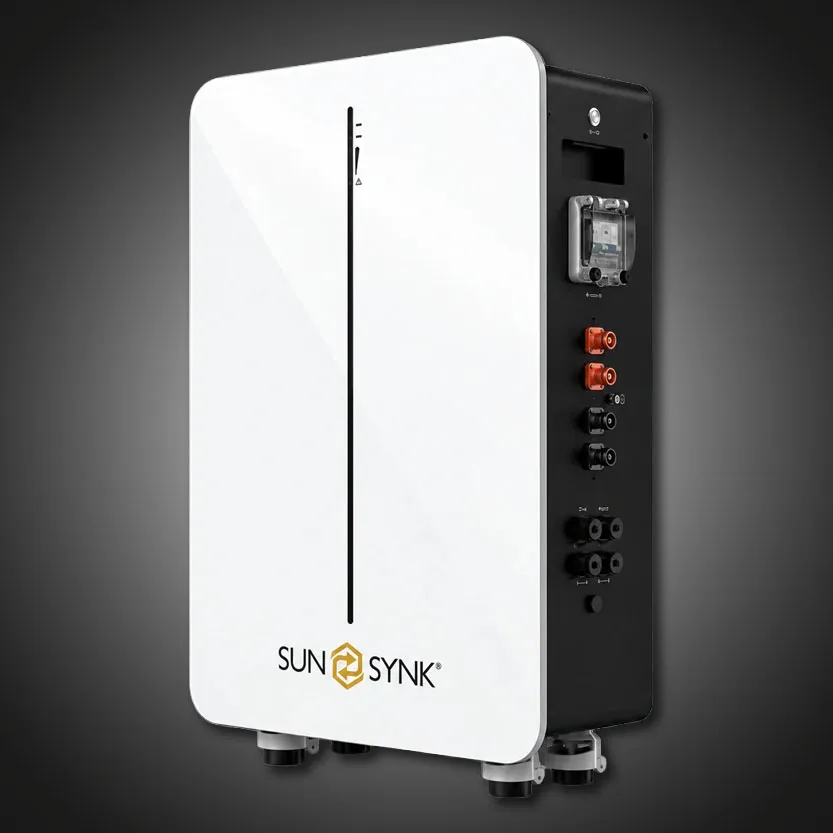

The Sunsynk R-Series 16.07kWh lithium battery is designed for reliable,
high-performance energy storage where power,
space and long-term reliability matter. With a compact floor-mounted design,
built-in safety features and a high continuous power output,
it is an excellent choice for residential and commercial backup systems.
The 51.2V 314Ah LiFePO₄ battery provides 16.07kWh of total storage capacity,
with up to 12.856kWh usable at 80% depth of discharge.
Up to 15 batteries can be connected in parallel, providing a total storage capacity of
up to 241.05kWh for larger energy storage requirements.
Key Features
- 16.07kWh capacity – 51.2V 314Ah LiFePO₄ battery
- 12.856kWh usable capacity at 80% depth of discharge
- 10.24kW continuous discharge power with a 0.637C discharge rating
- Up to 15 batteries in parallel for systems up to 241.05kWh
- 6000-cycle lifespan for long-term energy storage
- IP65-rated enclosure suitable for indoor or outdoor installation
- Built-in aerosol fire suppression for enhanced safety
- Integrated isolation breaker for added protection and easier installation
- Advanced Battery Management System (BMS) with protection against:
- over-charge, over-discharge, over-current and high/low temperatures
- Floor-mounted design for straightforward installation
- 10-year product warranty
Built for Reliable Backup Power
With its high power output, long cycle life and flexible expansion options,
the Sunsynk R-Series is well suited to solar installations where dependable backup
power and substantial energy storage are required.
Its IP65 rating and integrated safety features also make it a practical choice for
demanding installation environments.
| Specification | Details |
|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Energy | 16076Wh |
Communication | CAN/RS485/RS232/Wi-Fi |
| Max. Discharge Current | 200A |
Protection Rating | IP65 |
Warranty | 10 Years |
Nominal Charge/Discharge Current | 157A |
Cycle Life | 6000 Cycles @ 80% DOD |
