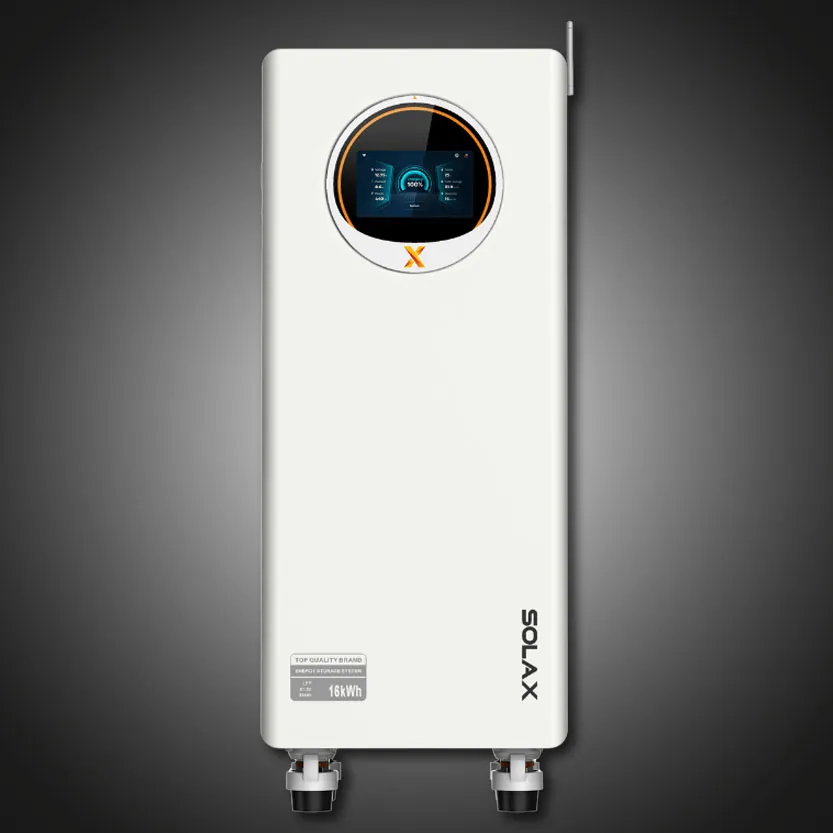

SolaX LD16 16kWh Lithium Battery

The SolaX LD16 16kWh Lithium Battery is designed for solar power systems that require substantial energy storage and reliable backup power. Using lithium iron phosphate (LFP) technology, it offers high charge and discharge capability, expandable storage capacity and a durable IP65-rated enclosure.

With its compact Cell-to-Pack (CTP) design and integrated wheels, the LD16 is designed to simplify installation while providing flexible energy storage for residential and commercial applications.

Key Features

• 16kWh nominal energy storage capacity

• 51.2V low-voltage LFP battery technology

• Maximum charging current of 155A

• Maximum discharging current of 210A

• Peak output power of 32.1kW for 3 seconds

• Expandable up to 16 batteries in parallel

• Scalable storage capacity from 16kWh to 256kWh

• IP65-rated protection

• Integrated aerosol fire suppression and carbon monoxide (CO) detection

• Built-in DC circuit breaker

• Cell-to-Pack design for efficient space utilisation

• Integrated wheels for easier positioning

• Optional LCD touchscreen for battery status and monitoring

• Remote fault diagnosis, firmware upgrades and maintenance support

High-Capacity Solar Energy Storage

The SolaX LD16 provides 16kWh of nominal storage in a single battery, making it suitable for systems with higher energy consumption or greater backup requirements. It stores excess solar generation for use during evenings, power outages and periods of low solar production.

Expandable Battery Capacity

Start with one battery and expand as your energy needs increase. Up to 16 compatible units can be connected in parallel, providing a scalable storage solution of up to 256kWh. Compatibility with the inverter and other batteries must be confirmed before combining units.

Designed for Safety and Reliability

The LD16 includes aerosol fire suppression, CO detection and a feedback-type DC circuit breaker. Its IP65-rated enclosure provides protection against dust and water ingress, while remote monitoring and diagnostic capabilities support system maintenance.
