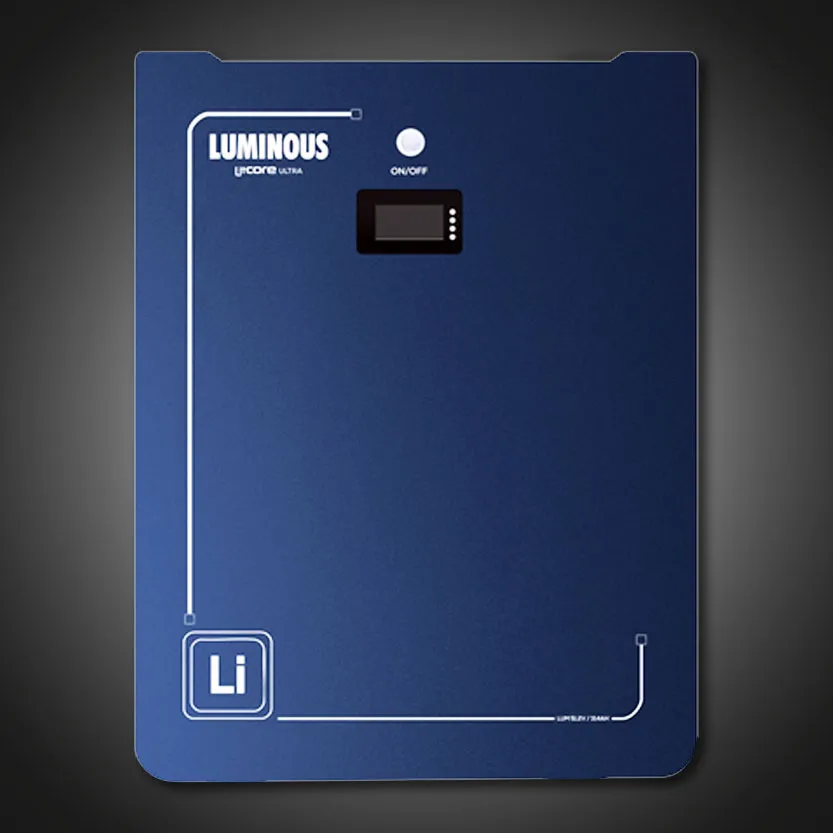

The Litcore Ultra 100Ah 5.12kWh (51.2V) is a premium Lithium Iron Phosphate (LiFePO₄) battery designed to provide dependable energy storage for residential and light commercial solar power systems. Engineered for high performance and long-term reliability, it delivers efficient daily cycling for hybrid, backup, and off-grid applications.
Featuring a compact wall-mounted design, the Litcore Ultra is simple to install while saving valuable floor space. Its modular architecture allows up to 15 batteries to be connected in parallel, enabling storage capacity to be expanded from 5.12kWh up to an impressive 76.8kWh as your energy requirements increase.
With a 1C continuous charge and discharge rate, the battery provides excellent power delivery and fast charging capabilities, making it an ideal choice for demanding solar energy storage applications. Built using advanced LiFePO₄ technology, it offers outstanding safety, long cycle life, and low maintenance for years of reliable operation.

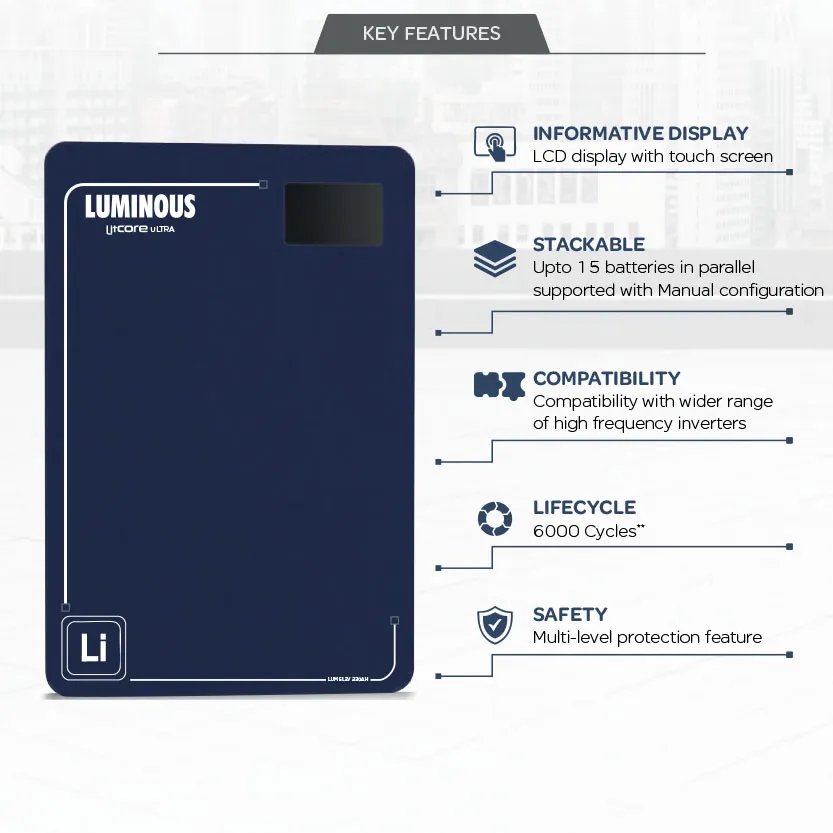

Key Features
- 5.12kWh energy storage capacity (51.2V, 100Ah)
- Advanced LiFePO₄ battery chemistry for enhanced safety and durability
- 1C continuous charge and discharge performance
- Expandable by connecting up to 15 batteries in parallel
- Maximum scalable storage capacity of 76.8kWh
- Space-saving wall-mounted design
- Long cycle life for dependable daily use
- Suitable for residential, commercial, backup, and off-grid solar systems
- Compatible with a wide range of leading hybrid inverter brands
- Backed by a 5-year manufacturer's warranty
The Litcore Ultra 100Ah battery offers an excellent balance of performance, scalability, and reliability, making it an ideal energy storage solution for homeowners and businesses looking to maximise solar self-consumption, improve backup power capability, and build a flexible battery storage system that can grow with their future energy needs.
Dimensions:
450 × 400 × 150 mm
53KG
|
Usable Energy
|
5120 Wh
|
|
Max.Charge and Discharge Current
|
5120 W
|
Surge Discharge Rate (15 Seconds) | 5800w |
|
Nominal Voltage
|
48 V
|
|
Scalability
|
Max. 15 in Parallel
|
|
Warranty
|
5 year
|
|
Capacity
|
100ah
|
|
Communication
|
RS485, CAN
|
Cycles |
6000 cycles Test conditions: 0.5C Charging/Discharging @25°C, 80% DOD. |
