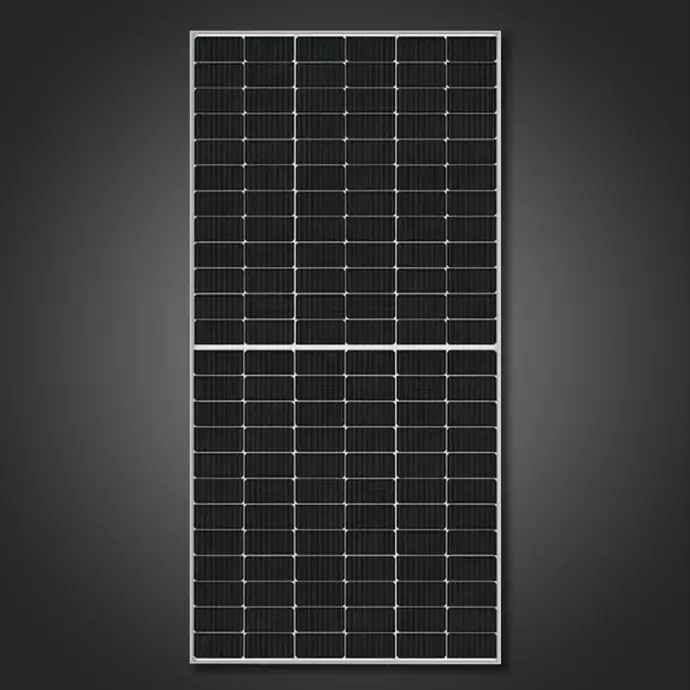

Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.
- High Power Output (600W) : The JA Solar 600W module delivers an exceptional power output, making it an ideal choice for residential, commercial, and industrial applications.
- N-Type Cell Technology: The use of N-type cells enhances the efficiency and longevity of the module.
- Durable Double Glass Design: The double glass construction provides enhanced durability, improving resistance to environmental stresses such as moisture, dust, and temperature fluctuations.
- Bifacial Technology: With bifacial panels, this solar module captures sunlight on both the front and rear sides.
Product Warranty: 12 year
Linear Power Output Warranty: 30 year
JA Solar Integrated Traceable System.
Dimensions:
2333 × 1134 × 30 mm
33KG
| Maximum output power | 605W |
| Open Circuit Voltage (VOC) | 52.4 V |
| Short Circuit Current (ISC) | 14.48 A |
| Voltage at Max Power (VMPP) | 43.76 V |
| Current at Max Power (IMPP) | 13.71 A |
| Maximum System Voltage | 1500 V |
| Cells | 144 cells |
| Cell Type | N-type Monocrystalline |
| Test Conditions | Irradiance at 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s |
| Warranty | 12 year Product Workmanship Warranty, 30 year Power Warranty |
