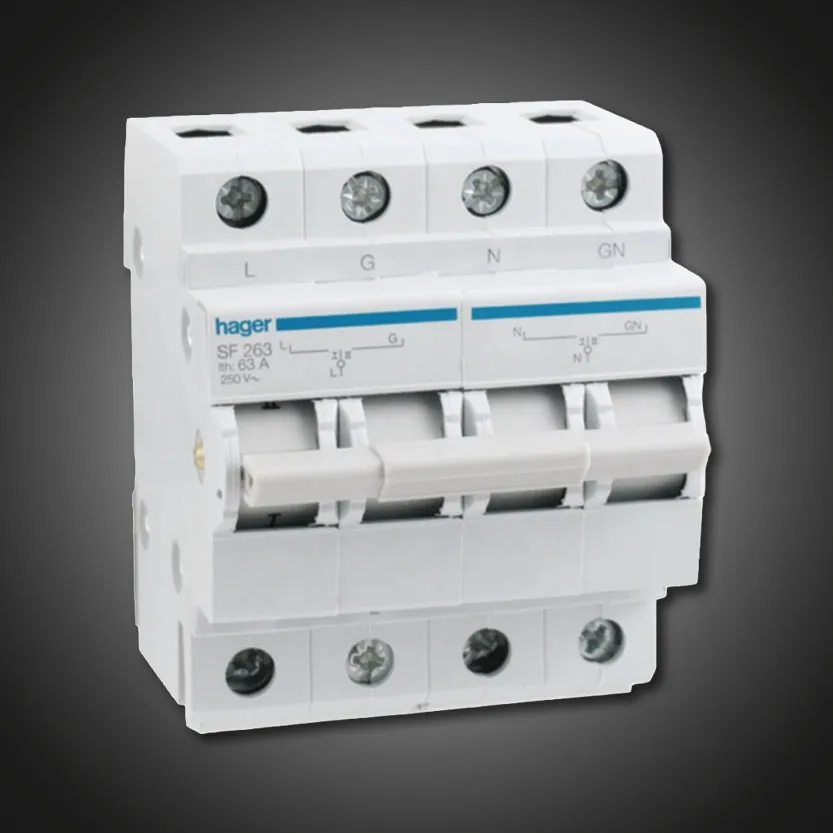

The Hager 2-Pole 63A Changeover Switch (SF263) is a modular DIN-rail device used for manually and safely transferring a single-phase load between two different 230V power sources, such as the utility mains and a backup generator or inverter.
Key Specifications
- Model Code: SF263
- Rated Current: 63 Amps
- Number of Poles: 2 Pole (2P)
- Operational Voltage: 230 V AC (50/60 Hz)
- Switching Positions: I – 0 – II (Source 1 – Off – Source 2)
- Module Width: 4 DIN modules (approx. 71.5 mm)
- IP Rating: IP20 (Indoor use)
- Mounting Type: 35 mm DIN Rail
