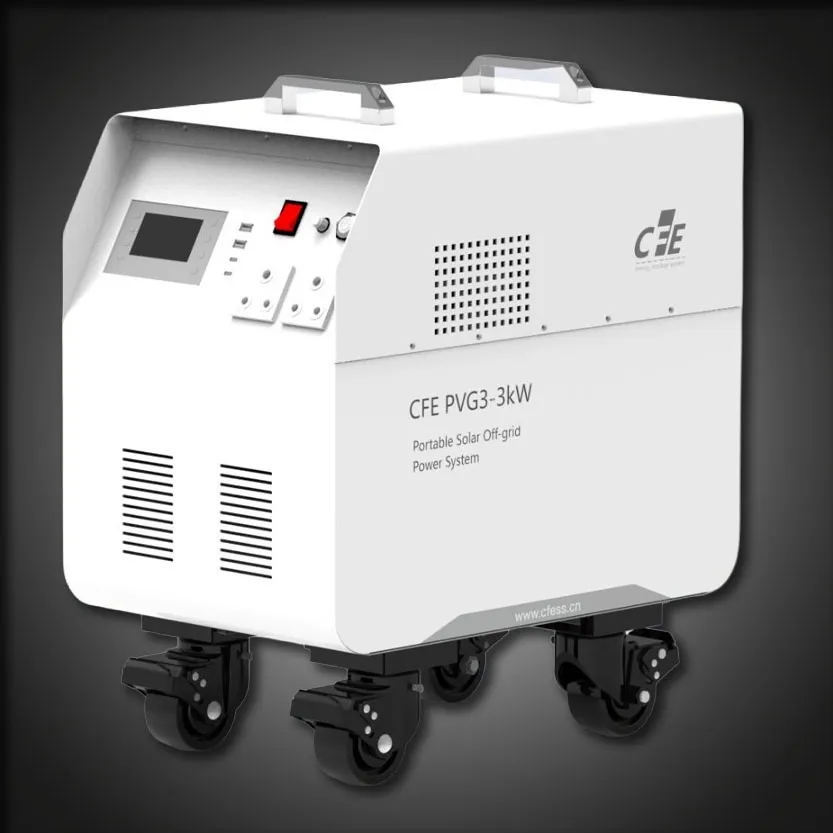

The CFE-PVG3 is a powerful all-in-one portable solar generator designed for home backup power, off-grid living, and outdoor energy needs. Equipped with a 3kWh (2560Wh) Lithium Iron Phosphate (LiFePO4) battery and a 3000W pure sine wave inverter, this system delivers stable, clean electricity for a wide range of appliances.
With AC and solar charging support, a built-in MPPT solar charge controller, and an easy-to-read LED display, the CFE-PVG3 provides an efficient and reliable energy storage solution. Its portable, stackable, and wall-mountable design makes it suitable for both residential and mobile power applications.
Key Technical Specifications
Battery Capacity: 2560Wh / 3kWh (25.6V 100Ah)
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Rated Output Power: 3000W
Inverter Type: Pure Sine Wave
Cycle Life: 3000+ cycles
Charging Options: AC charging and solar (PV) input
Display: Integrated LED display for system monitoring
Design: Portable, stackable, or wall-mounted installation
Main Features
Powerful 3000W Inverter
Capable of running essential household appliances such as fans, lighting, and even 1.5HP air conditioners.
Long-Life LiFePO4 Battery
Advanced Lithium Iron Phosphate technology ensures improved safety, stability, and a 3000+ charge cycle lifespan.
Smart Solar Charging
Integrated MPPT controller maximizes solar panel efficiency and improves charging performance.
Multiple Charging Methods
Recharge using AC power or solar panels, offering flexibility for both grid-connected and off-grid environments.
Flexible Installation Options
Designed for portable use, but can also be stacked or wall-mounted as part of a home energy storage setup.
Safety and Certifications
The CFE-PVG3 includes comprehensive safety features and internationally recognised certifications:
These certifications ensure the system meets strict safety, quality, and transportation standards.
Ideal Applications
.
Dimensions:
530 X 332 X 550mm
49KG
Product Capacity | 3072Wh (25.6V 120Ah)
|
| Model | PVG3
|
DC Input | 25.6VDC 100A (MAX) |
PV Input | 35-180VDC (MAX) |
AC Output | 220~230VAC, 50HZ/60HZ 4.5A, 1000W(MAX) |
Usb-A Port (X2) | QC3.0: 3.6V～6.5V@2A, 6.5V～9V@2A, 9V～12V@1.5A(MAX=18W) |
Usb-C Port (X2) | QC4.0+: 5V=3A, 9V=3A, 12V=2.25A(MAX=27W) |
Battery Type | Lithium iron phosphate |
| Battery type | LiFePO4 |
Cycle Life | 3000 times + |
