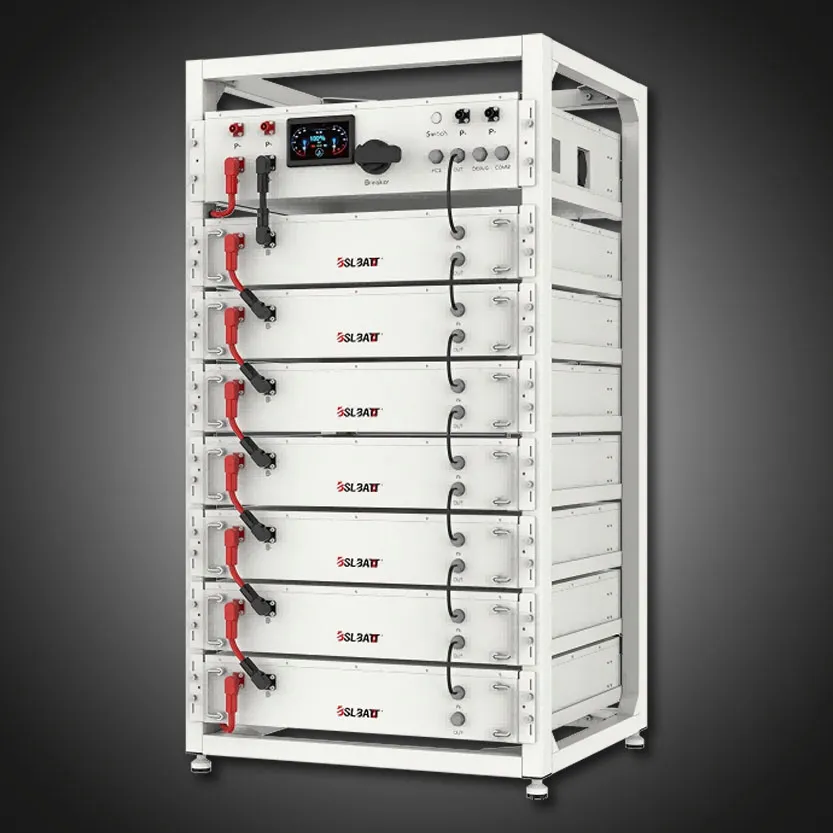

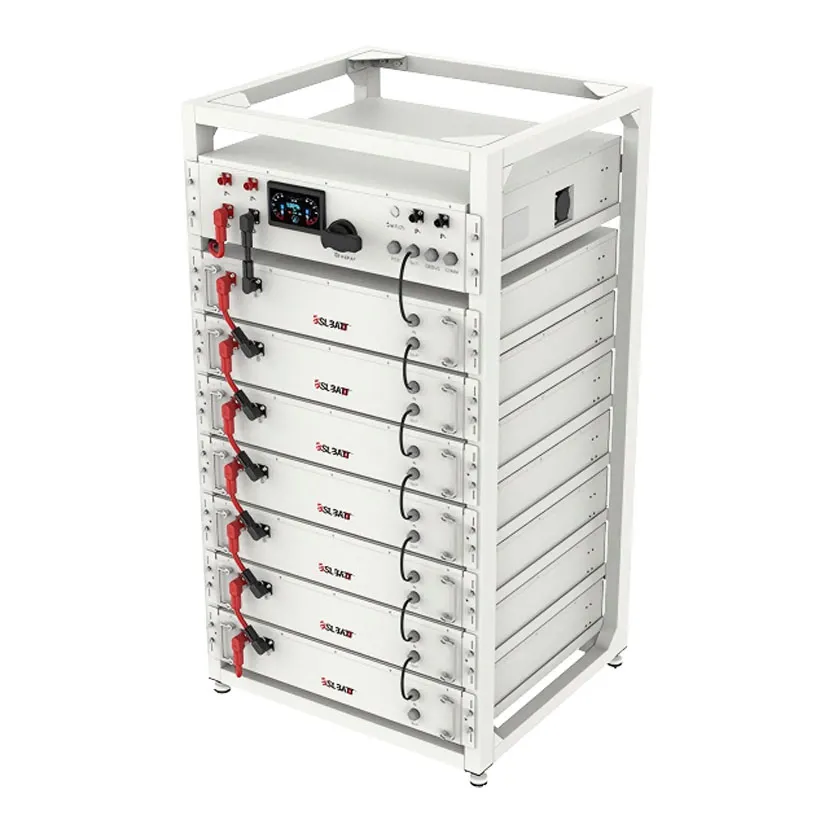

The BSLBATT ESS-BATT RE Series is a cutting-edge, modular high-voltage energy storage solution engineered for commercial and industrial (C&I) applications. Built with premium EVE 3.2V 127Ah LiFePO4 cells, this advanced system delivers exceptional performance, scalability, and long-term reliability for businesses, factories, microgrids, and large-scale solar installations.
Each module provides 9.75kWh of usable energy, while its flexible architecture allows for seamless expansion up to 535kWh, making it ideal for both medium and large energy storage requirements.
Key Features & Benefits
Scalable Modular Design
-
Start with a single 9.75kWh module and expand up to 535kWh
-
Supports up to 11 modules in series (844.8V per cluster)
-
Connect up to 5 clusters in parallel for maximum capacity
High Voltage Efficiency
-
Operates at up to 844.8V, reducing current losses
-
Enhances overall system efficiency and inverter performance
Advanced LiFePO4 Safety
-
Utilises stable Lithium Iron Phosphate (LiFePO4) chemistry
-
Integrated multi-layer BMS with active protection
-
Designed for safe operation in demanding environments
Long Lifespan & Low Cost of Ownership
-
4000+ charge cycles at 80% DoD
-
Minimises replacement costs over time
-
Ideal for long-term commercial energy projects
Compact & Space-Efficient
-
High-density rack-mounted design
-
Up to 30% more energy density than conventional systems
-
Saves valuable installation space
Seamless System Integration
-
Supports CAN & Modbus communication protocols
-
Compatible with leading inverters and EMS platforms
- Easy integration into new or existing solar and storage systems
1140 X 764 X 740mm
420 kg
| Specification | Details |
|---|
Battery Model | RE5 |
Number of Packs | 5 |
System Rated Voltage | 384V |
Operating Voltage Range | 336V~432V |
Recommended Voltage Range | 348V~420V |
System Rated Energy | 48.768kwh |
Cycle Life | >4000 (80% Depth of Discharge @25° C) |
Communication Protocol | CAN/ModBus |
Ingress Protection (lP) | IP20 |
