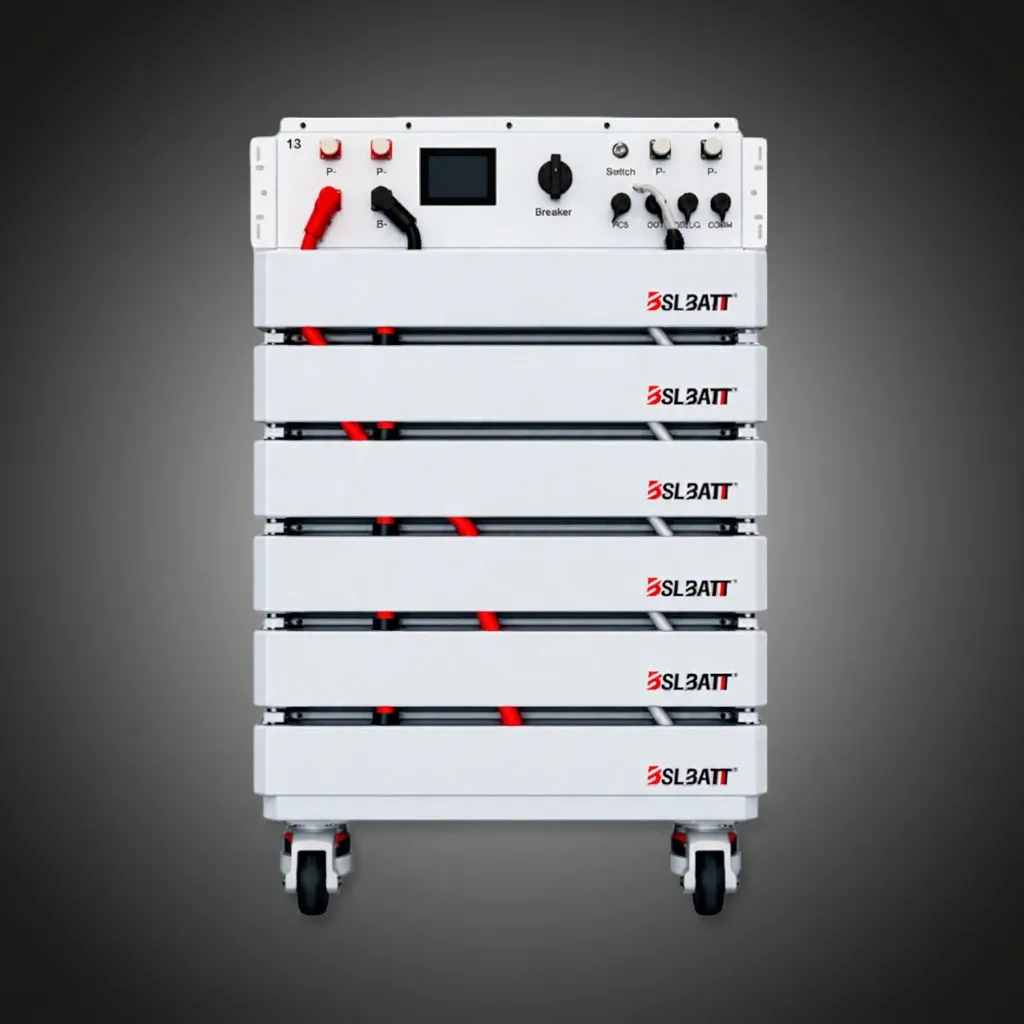

The BSL ESS-BATT RE6 is a high-voltage lithium iron phosphate (LiFePO4) battery storage system designed for commercial and industrial (C&I) energy storage applications. With a total rated capacity of 58.5kWh, this modular battery system is suited to commercial solar installations, energy storage and backup power applications requiring reliable, high-capacity battery storage.
The RE6 consists of six 9.75kWh battery modules, delivering a rated system voltage of 460.8V. Its modular architecture, intelligent Battery Management System (BMS) and integrated safety protection make it suitable for demanding commercial and industrial energy storage installations.
Key Features
58.5kWh rated energy capacity
6 × 9.75kWh battery modules
460.8V rated system voltage
Lithium Iron Phosphate (LiFePO4) battery chemistry
More than 6,000 cycles at 80% depth of discharge (DoD) at 25°C
Maximum 1C discharge capability
Intelligent Battery Management System (BMS)
Three-level safety protection against over-voltage, over-temperature and short circuits
Natural cooling
CAN communication
IP20 rating for indoor installation
Modular design for commercial and industrial energy storage
10-year limited manufacturer warranty or up to 6,000 cycles, whichever comes first
764 × 740 × 1290mm
520 kg
| Specification | RE6 |
|---|
| Battery Chemistry | LiFePO4 |
| Number of Battery Packs | 6 |
| Energy per Pack | 9.75kWh |
| Total Rated Energy | 58.8kwh |
| System Rated Voltage | 460.8V |
| Cell Capacity | 3.2V / 127Ah |
| Cooling | Natural Cooling |
| Cycle Life | >6,000 cycles |
| Depth of Discharge | 80% |
| Communication | CAN |
| IP Rating | IP20 |
| Installation | Indoor |
