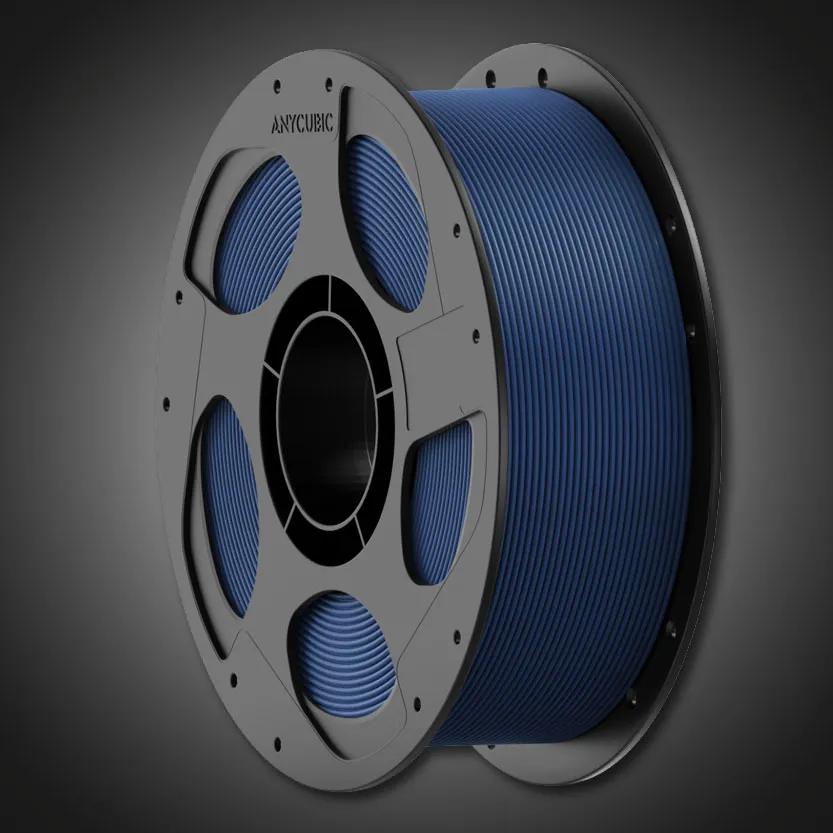

The Anycubic PETG-CF Satin Carbon Fiber Filament combines the strength and durability of PETG with carbon fibre reinforcement for more rigid, impact-resistant prints. Designed for functional parts and detailed models, it offers improved structural performance while producing a smooth satin surface that helps conceal layer lines.
The refined finish and subtle lustre make it well suited to automotive parts, sci-fi models, functional prototypes and decorative prints. With excellent water and weather resistance, PETG-CF is also a practical choice for demanding applications where standard PETG may not offer enough rigidity.
This 1kg spool is compatible with FDM 3D printers and is recommended for use with a hardened steel nozzle.
Features
- Carbon fibre reinforced for increased rigidity and impact resistance
- Satin finish helps conceal layer lines for a cleaner appearance
- Suitable for functional parts, prototypes, models and decorative prints
- Water and weather resistant
- Compatible with FDM 3D printers
- Requires drying before use
- Recommended for use with a hardened steel nozzle
- 1kg spool
Specifications
- Filament Type: PETG-CF
- Printer Technology: FDM
- Spool Weight: 1kg
- Drying Required: Yes
- Drying Conditions: 60–65°C for 6–8 hours
- ACE Compatibility: Compatible
- Recommended Nozzle Size: 0.4mm or larger
- Recommended Nozzle Material: Hardened steel
- Printing Temperature: 240–270°C
- Heated Bed Temperature: 65–70°C
- Recommended Print Speed: 40–250mm/s
- Maximum Flow Rate: 11mm³/s
- Density: 1.32g/cm³
- Melting Point: 221°C
- Vicat Softening Temperature: 74°C
- Heat Deflection Temperature: 67°C at 0.45MPa
- Water Absorption: 0.38%
- Tensile Strength: 54 ± 2MPa
- Young's Modulus: 2550 ± 100MPa
- Elongation at Break: 12 ± 1%
- Bending Strength: 88 ± 2MPa
- Bending Modulus: 3100 ± 150MPa
- Izod Impact Strength (X-Y): 60 ± 4kJ/m²
- Tensile Strength (Z): 37 ± 3MPa
- Intelligent Identification: Supported
- Reusable Filament Spool: Supported
- Recommended Applications: Functional parts, decorative prints, toys and fandom models
